Foundation Solutions

Our Services

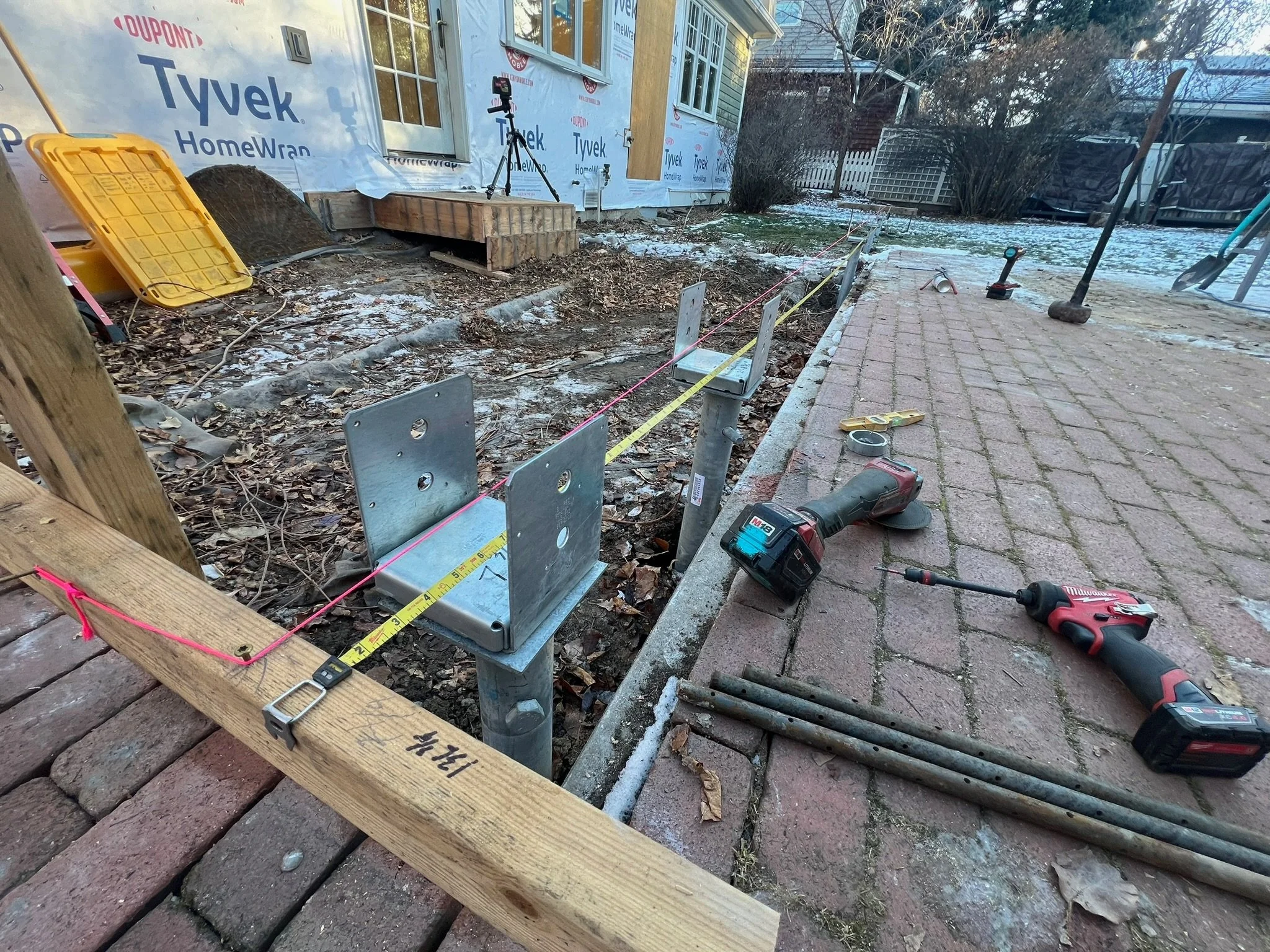

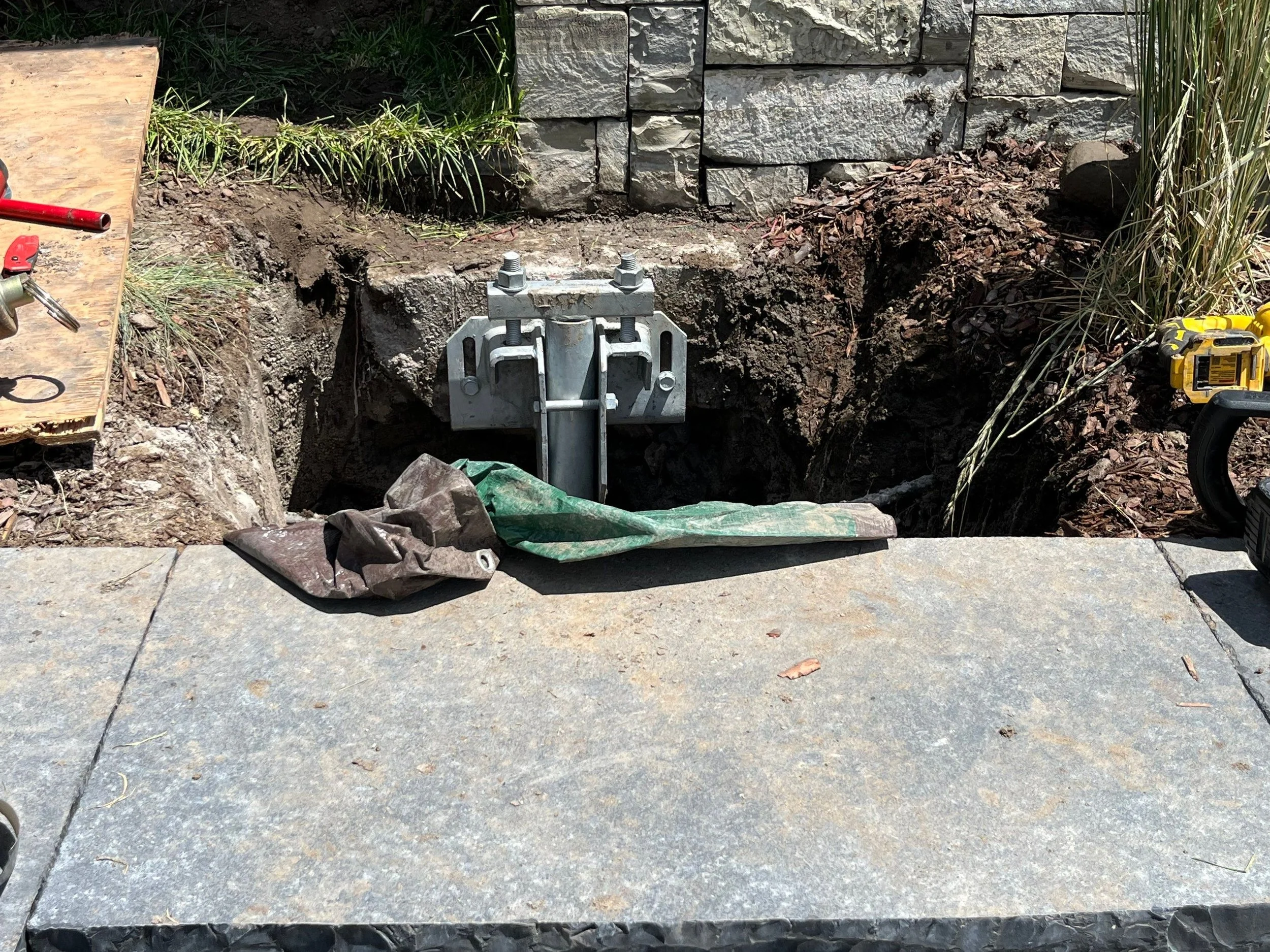

  • Ground screws are a no-concrete foundation that screw into the ground. They offer fast, stable support for outdoor structures.

  • Helical piles are engineered for deeper, heavier-duty applications.

  • Pull-down micro piles combine helical piles with grout to create a reinforced, high-capacity foundation. They’re ideal for heavy loads and poor soil, offering strong support with minimal excavation.

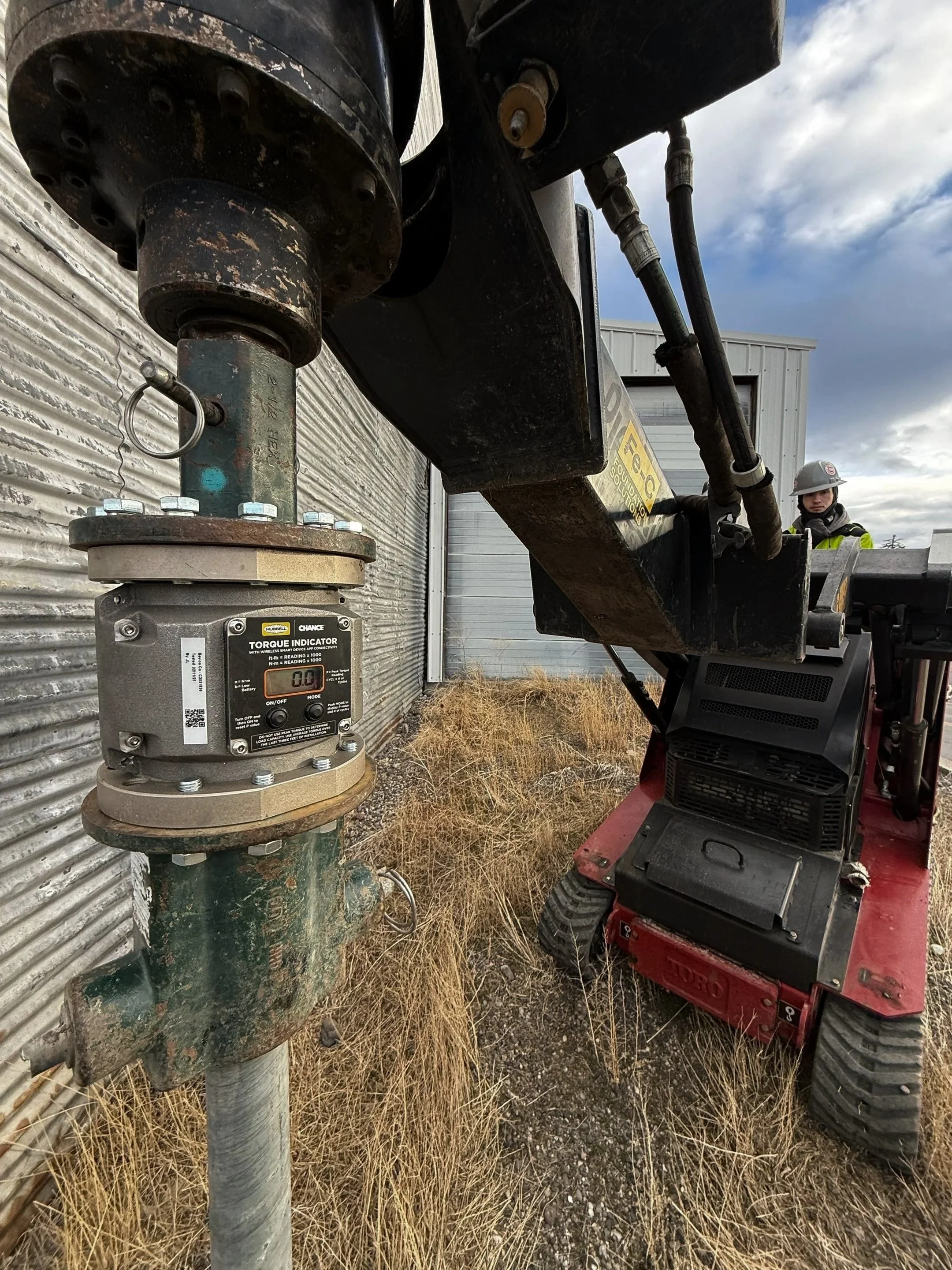

  • Helical pile testing measures the load capacity and performance of a pile after installation. Common tests include tension, compression, and lateral load tests to ensure stability and compliance with engineering requirements.

Ground screw 3.00”

  • Height 63 in. (1.60 m)

  • OD 3.00 in. (7.62 cm)

  • Load Rating (Silty Sand) 2450 lbs. (1115.38 kg)

  • Load Rating (Sandy Clay) 8129 lbs. (3687.25 kg)

  • Cost $$

-ICC-ES ESR-4226

A large metal screw with a bracket mount and a sharp point, showing a textured surface and a spiral thread.

Ground screw 4.50”

  • Height 63 in. (1.6m)

  • Width 4.50 in. (11.43 cm)

  • Load Rating (Silty Sand) 4977 lbs. (2257.5 kg)

  • Load Rating (Sandy Clay) 12823 lbs. (5816.4 kg)

  • Cost $$

-ICC-ES ESR-4226

Close-up of a large metallic screw with a bracket mount and a pointed tip.

Helical Pile 10” x 5’

  • Height 63”

  • Width 10”

  • Mass

  • Torque Rating

  • Load Limit

  • Best Uses

  • Cost $$

A helical pile with a spiral screw design, used for drilling into soil or other materials.
